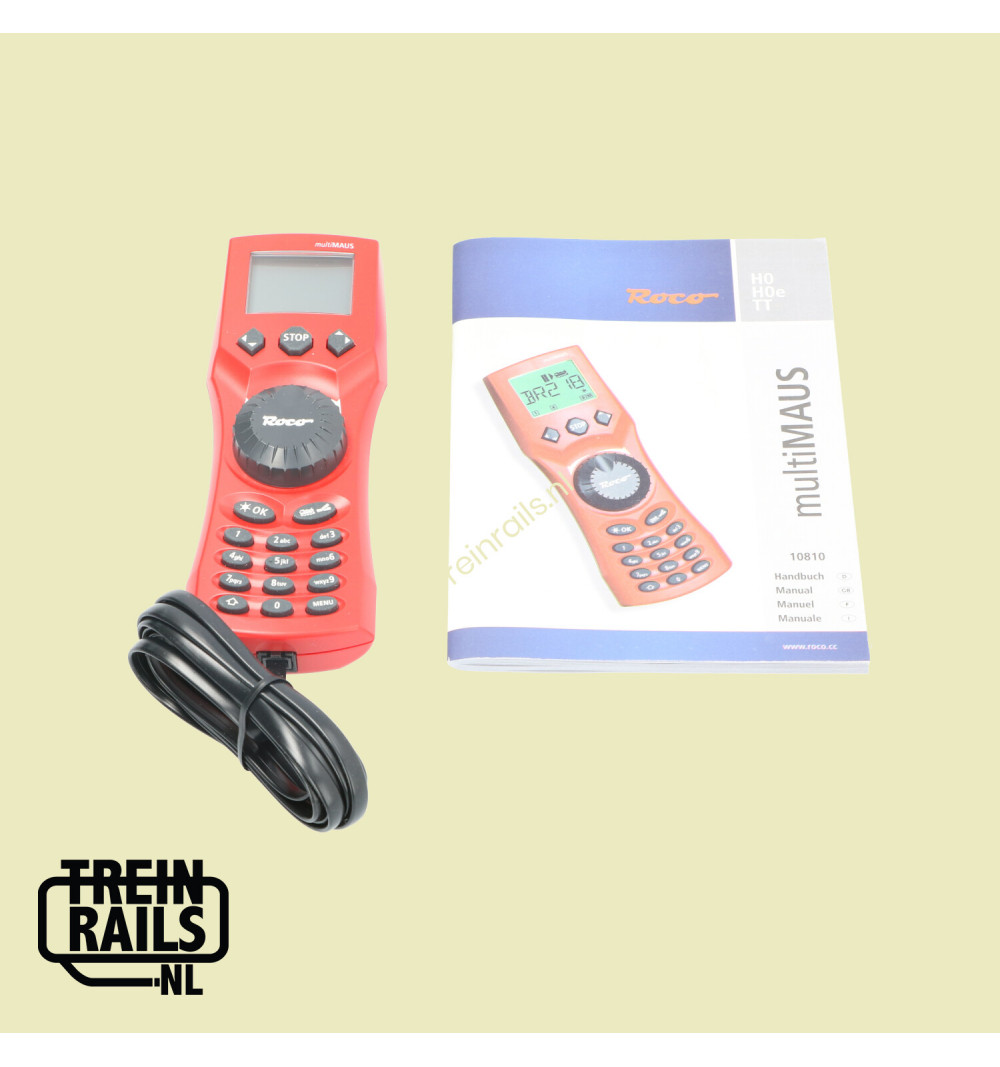

10810 Roco - MultiMAUS

Bestuur de treinbaan met deze handige MultiMAUS.

operating device with many possibilities. Several Z21 multiMAUS devices can be operated on the system at the same time.

It is compatible with the old Lokmaus 2 system.

Up to 9999 locomotive addresses can be operated with direct input; 64 can be stored in a data bank and labeled with names: for example 103RB (103 red-beige). Per locomotive up to 29 functions (including headlights) can be activated if the machine has been equipped accordingly. The locomotives can alternatively be operated with 14, 28 and 128 driving levels; this can be basically defined but if need ed it can be changed and adapted for each locomotive on demand.

With two different ways of programming you can adjust your locomotive decoder according to your own wishes: The most important CV values from one to five are accessible with the button combination “menu” and 1–5, the total of 1024 possible CV values can be addressed with the programming menu. Of course all values up to 255 – depending on the decoder layout – can be programmed.
Exporting CV 1–1024 in connection with the exportable amplifier (z21/Z21) is possible.

Switch mode: the Z21 multiMAUS can switch up to 1024 magnetic devices! These elements have to be equipped with an electric device and be connected to a magnetic device decoder. The programming of the magnetic device decoder is done electronically via the tracks.

In connection with 10764, that Z21 multiMAUS, which is inserted into the master input, goes to the central unit.

■ Firmware updateable

Link naar de handleiding:  Naar de Roco Multimaus handleiding
